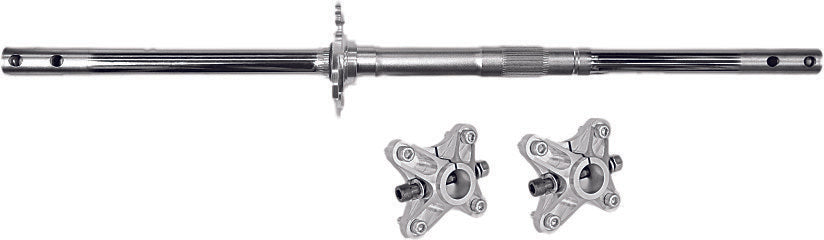

Elim X33 Axle Yam

The X-33 axle is a truely innovative axle design. The X-33 uses the same superior material and heat treating as the Eliminator. The unique difference is in the design. Standard design ATV axles neck down to about 1" in diameter. A splined wheel hub slides onto the axle shaft and is retained with a hex nut. As all ATVer's know, hubs loosen frequently. The X-33 changes all that. The wheel hub is clamped solid and driven by a pin on a 1-3/8" diameter shaft. This axle is rifled to reduce weight near the rotational axis of the ATV. The "straight bar" X-33 axle has no narrow or weak areas.

Fitment:
2004 Yamaha YFZ450
2005 Yamaha YFZ450
2006 Yamaha YFZ450
2006 Yamaha YFZ450 Bill Balance Edition
2007 Yamaha YFZ450
2007 Yamaha YFZ450 Bill Balance Edition
2007 Yamaha YFZ450 SE
2008 Yamaha YFZ450
2008 Yamaha YFZ450 SE
2009 Yamaha YFZ450
2012 Yamaha YFZ450
2013 Yamaha YFZ450
